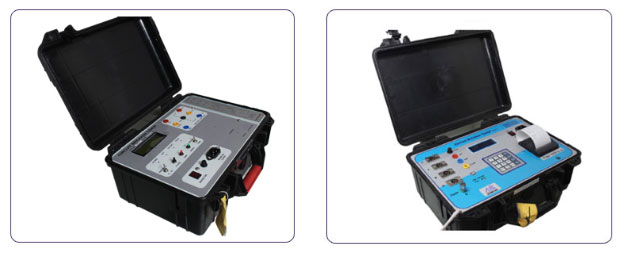

Circuit Breaker Timer

Circuit Breaker Timer / Breaker Timer / Timing Kit manufactured and exported by Ajit Electronic Corporation. The protective devices such as relays, overload coils & circuit breakers are required to be checked regularly to ensure that they are always ready to operate.

We AJIT ELECTRONICS CORPORATION are Manufacturers, Exporters & Leading Suppliers of Circuit Breaker Timer Loacated in Dombivli, Thane, Mumbai, India.

AJIT make CIRCUIT BREAKER TIMER has a wide range of applications. But mainly our circuit breaker timers are designed to suit the applications different types of circuit breaker testing. The protective devices such as relays, overload coils & circuit breakers are required to be checked regularly to ensure that they are always ready to operate. Hence the protective devices are checked regularly for their operating time.

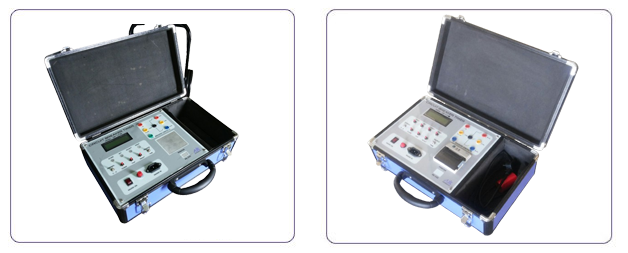

Circuit Breaker Timerr
Salient features:

• Very accurate measurements
• Economical
• Micro controller based technology.
• Very compact and lightweight



Available built in thermal printer & / or RS - 232 interface with application software.

Technical Specification:
Range: Up to 999 millisecond for three phases independently
Display: 16 x 2 Large backlite LCD type.
Accuracy : 0.5%.
Commands: Close & trip for breakers with built in relays having 220V AC/DC and 6 Amp rating.
Trip free: C O timing of breakers
Reset: Resets the counter to zero.
Input: Potential free contacts across R-Y-B and common.
Supply: 230 V AC, single phase, 50 Hz.
Enclosure: The instrument is housed in powder coated sheet metal cabinet order information

Ordering Information :

Model No. 3 Pole Timing Display Built In Thermal Printer RS 232 PC Interface Data Storage
CBT 1 - - -
CBT 1 P -
CBT 1 RS
