Oil Tan Delta Test System / Tan Delta & Resistivity Test Set / Loss Angle Meter
Oil Tan Delta Test System / Tan Delta & Resistivity Test Set / Loss Angle Meter are manufactured and exported by Ajit Electronic Corporation. The under test oil is stressed by an AC voltage to determine the desperation factor / loss angle measurement using three terminal oil sell. Oil resistivity can be measured using IR Tester & Three terminal oil sell.

We AJIT ELECTRONICS CORPORATION are Manufacturers, Exporters & Leading Suppliers of Oil Tan Delta Tester Loacated in Dombivli, Thane, Mumbai, India.

Working principle
The current through the capacitor will not lead exactly 90 deg. From the voltage across it. This extent of deviation in the phase is measured with an ultra sensitive phase detector comprising of solid state components only. The stress voltage at which the measurements are to be made, can be set as desired. Power source is continuously variable up to 600 V AC which gives a maximum stress voltage of 300 / v / mm in our Three Terminal Oil Cell. However, if tests are to be carried out at higher stress voltage then the high rating power source can be supplied at extra cost. The stress voltage in normal test should be above 200 V/mm. as per IS recommendation.

Oil Dissipation Factor Meter

System Consist Of Following Instruments :

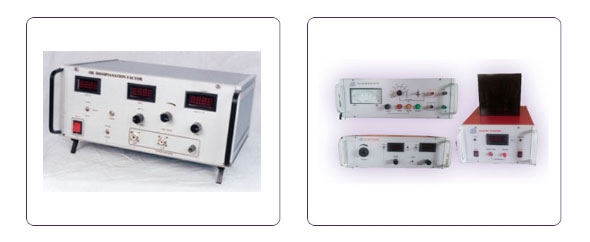

Oil Dissipation Factor Meter (Model-ODF)
This instrument measures dissipation factor (Tan-Delta) of the insulating liquids (oil) with the help of IR Tester and three terminal oil cell with heating chamber.
Features
  • Direct digital reading of dissipation factor (Tan-Delta).
  • Power supply sufficient to create required stress voltage.
  • High testing speed as measurements are carried out under actual working conditions    and no turning is necessary prior to every single reading.


Technical Specification
Dissipation Range : 19.99% FSD with resolution of 0.01%
    199.9% FSD with resolution of 0.1%
Dielectric constant range : 0.2 to 10
Test voltage : 0 to 300/600 VAC continuously.
Indication of Null : 3 ½ Digit DPM.
Indication of Tan-Delta : 3 ½ Digit DPM.
Indication of Stress Voltage : 3 ½ Digit DPM
Accuracy : ± 1% of reading ± 0.0001 Tan-delta.
Power Supply : 230 VAC ± 10% / 50 Hz.
Warm up time : 5 minutes.

I. R. Tester (Model IR-1)

I R Tester


The instrument is designed to test the insulation resistance of electronic and electrical components in the range of 1 Meg ohm to 10 Million Meg ohm.
Features
  • Push button controls for rapid testing.
  • Fully protected against all overload and short-circuits.
  • Drift free operation.
  • Guard terminal and built-in EARTH.
  • Push button self indicating controls for charge, measure & discharge operations.
  • Maximum output current is made limited to safe value to eliminate the risk of serious shocks.
  • Suitable for testing resistivity of the insulating liquids when used with oil cell as per IS.

Technical Specification
D.C. Test Voltages : 100V, 250V, 500V, 1KV
Resistance Range : 1 Meg ohm to 10 9 Meg ohm in 6 ranges.
Indication : Taut band panel meter.
Overload Protection : Fully protected against wrong selection of ranges & breakdown of components under test.
Warm up time : One minute.
Power Supply : 230 VAC / 50 Hz.
Weigh : Less than 7 Kg.

Heating Chamber (OHC) with three terminal oil cell

Heating Chamber

Heating chamber is designed to heat the insulating liquid (oil) up to elevated temperature 0-150°C in short time of 15/20 minutes. A potentiometer is provided for setting of temperature at required level. Heating chamber with oil cell for easier testing at required temperature fitted with thermostat and protection device to prevent shock hazards. Three terminal oil cell is designed to test the dissipation factor (Tan-Delta) and resistivity of the insulation liquids.


Technical Specification
Temperature range : 0 to 150°C
    199.9% FSD with resolution of 0.1%
Indication : 3 ½ Digit DPM
Heating element : Heating coil
Power source : 230 VAC/50 Hz
Sensing probe : PT 100
Made up of : SS & Teflon spacers
Cell Capacitance : 55 ± 1PF
Volume (Oil) : 50 ml.
Cell Constant : 620 Nominal
Electrodes Distance   2 mm
Quote Catalogue
