Transformer Ratio Meters / TRM 1000
|
| Ratio Meter / Turns Ratio Meter/ Ratio Tester are manufactured and exported by Ajit Electronic Corporation. The Instrument Actually indicates division of number of turns in HV Winding & Number of turns in the LV winding of under test transformer. |
We AJIT ELECTRONICS CORPORATION are Manufacturers, Exporters & Leading Suppliers of Transformer Ratio Meters Loacated in Dombivli, Thane, Mumbai, India.
This Ratio Meter is very sensitive as voltage applied to LT WDG is 1 VOLT. Max voltage developed on HT side is 200 Volts. Give approx. 5 minutes of warm up time to meter before taking first reading on any day. |
|
|
| |
| Application : |
Transformer Ratio Meters / TRM 1000 are the most modern digital turn's ratio meters widely used to test the turn's ratio of high voltage windings to low voltage windings of any transformer. These meters are accurate, compact & light in weight. |

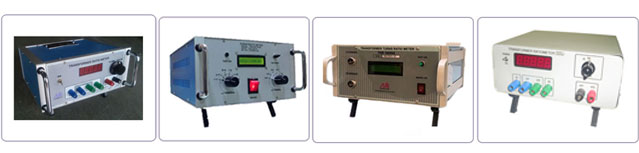

We have with us a quality range of Transformer Ratio Meters / TRM 1000. These have 4 ½ digit direct read-out and are widely used to test the turn's ratio of high voltage windings to low voltage windings of any transformer. |
| |
| Salient features: |
• Wide range of measurement
• Economical
• Design with latest technology
• Compact and light weight |
|
| |
|
| Technical specifications |
| Measuring Ranges: |
a) 0 - 19.999 |
| b) 0 - 199.99 |
| Display: |
4 1/2 Digit , LED Type |
| Power Requirement: |
230 V AC +/- 10 % , 50 Hz, 1 Phase |
| Accessories: |
Mains Cord, Test Leads, Instruction Manual |
|
|
| |
| |

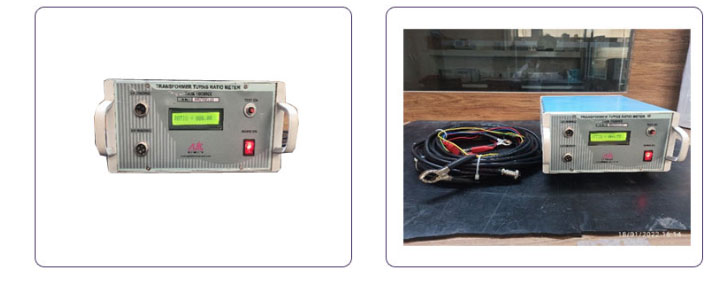

| ONE PHASE TRANSFORMER RATIO |
 |
| |
| GENRAL: |
| AJIT Transformer Ratio meters are the most modern turn’s ratio meters widely used to test the turn’s ratio of high voltage windings to low voltage
windings of Transformer. These meters are accurate, compact & light in weight. |
| FEATURES: |
| • Design with latest Technology. |
| • 4 Digit Direct read- out in Digital type. |
| • Compact and light weight. |
| • Full range of measurement. |
| • Economical. |
| |
| TECHNICAL SPECIFICATIONS : |
| MODEL/TYPE |
MEASURING RANGE |
DISPLAY |
POWER REQUIRMENT |
ACCESSORIES |
| TRM-1000 NX Digital type |
A) 0 to 20
B) 20 to 200
Auto-ranging |
4 Digit, LCD type |
230V AC, 50 Hz,
Single Phase |
A) Mains Card B) Test Leads C) Instruction manual |
|
| |
| |
THREE PHASE TRANSFORMER RATIO |
 |
| GENRAL: |
| AJIT Transformer Ratio meters are the most modern turn’s ratio meters widely used to test the turn’s ratio of high voltage windings to low voltage windings of Transformer. These meters are accurate, compact & light in weight. |
| |
| FEATURES |
| • Suitable for Power & Distribution
transformers |
| • 16 X 1 Jumbo LCD Display. |
| • Phase selector knob. |
| • ON/OFF Switch for applying test
voltage. |
| • Aux ON/OFF Switch |
| • Compact and light weight. |
| • Full range of measurement. |
• Economical
|
| FEATURES |
Fuse is incorporated for protection.
Excitation On HV side. |
| |
| TECHNICAL SPECIFICATIONS : |
MODEL/TYPE |
MEASURING ANGE |
DISPLAY |
POWER
REQUIRMENT |
HV EXCITATION
VOLTAGE |

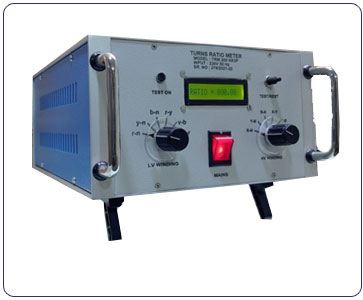

TRM-200 NX
Digital type |
A) 0 to 20
B) 20 to 200
Auto-ranging |
4 Digit,
LCD type |
230V AC, 50 Hz, |
58 to 60 V AC
50 Hz |
| EXCITATION CURRENT |
WEIGHT (APPROX) |
DIMENSION (mm) |
ACCESSORIES |
| 500 m A |
(4.5 KG- TRM) (1.5 KG- LEADS) |
FRONT- h- 152 , W- 254, |
A) Mains Card B) Test Leads C) Instruction manual |
| |
|
| |
| |
| |
| |
| |
