HV tester /HV test set

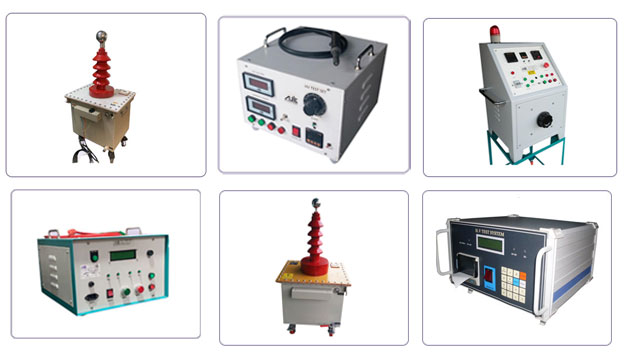

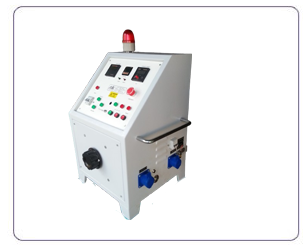

HV test set / HV tester manufactured and exported by Ajit Electronic Corporation. Most of the electrical components, devices, equipments etc. are to be tested for dielectric with stand test according to the relevant reference standards. The application of the particular dielectric strength of electrical / electronics components, small appliances, tools, motors is specified in the books as per IS standard specifications. AJIT H.V. Tester is being manufactured up to 100KV capacity and also have the motorized versions.

We AJIT ELECTRONICS CORPORATION are Manufacturers, Exporters & Leading Suppliers of HV Tester Loacated in Dombivli, Thane, Mumbai, India.

These sets are useful for testing the high voltage withstanding capacity of an electrical installation. The application of the particular dielectric strength of electrical / electronics components, small appliances, tools, motors is specified in the books as per IS standard specifications. AJIT H.V. Tester is being manufactured up to 100KV capacity and also have the motorized versions

HV Tester, High Voltage Testers
Features of H.V. Tester are :
• Compact & Simple To Operate.
• Audio Visual indication for presence of high voltage
• Microcontroller based motorised Semi-Automatic sets are available.
• Zero interlock for HV output
• Continuously variable test voltage
• Highly sensitive electronic circuit for tripping
• Micro controller Based Sets are also available
• Analog Or Digital read-outs
• Adjustable Leakage current


We are one of the leading manufacturers of a quality range of H.V. Test Sets. Compact and easy to use, these are provided with an audio visual indication for presence of high voltage. Further, these test sets are available in AC as well as Dc outputs up to 200 KV of voltage.
Automatic Version
Following parameters can be set by 4×4 matrix keypad :
A) Output Test Voltage
B) Leakage / Trip Current Limit
C) Test Duaration (Time)
HV tester with built in printer, with RS 232 interface & with both the features are considered as Automatic version HV test set. In Automatic HV Test Set both types like with AC output & with DC output instrument are available.

SEMI AUTOMATIC VERSION
Following parameters can be set by push button with potentiometer and thumb wheel switch :
A) Output Test Voltage
B) Leakage / Trip Current Limit
C) Test Duaration (Time)
Once above parameters set and the high voltage is started the instrument will automatically raise the voltage. On reaching of the test voltage, control circuit will start command to timer. After completion of duration motor will come back.

Ordering Information
Output Analog Meters Analog Meters with Digital Timer Digital Meters Digital Meters with Digital Timer Digital Meters with built in Printer Digital Meters with RS232 interface Digital meters with printer & RS232 interface Semi Automatic
AC HV # HV # T HV # DIGI HV # T DIGI HV # P HV # RS HV # PRS HV # SEMI
DC - - HV # D HV # D T HV # D P HV # D RS HV # D P RS HV # D SEMI
AC/DC Combined - - HV # AD HV # AD T HV # AD P HV # AD RS HV # AD P RS HV # A D SEMI
Technical specifications:
Sr no Model no OP Voltage Trip Current Sr no Model no OP Voltage Trip Current
1 HV 1 0 to 5 KV 30 mA 11 HV 11 0 to 50 KV 100 mA
2 HV 2 0 to 5 KV 100 mA 12 HV 12 0 to 60 KV 50 mA
3 HV 3 0 to 10 KV 30 mA 13 HV 13 0 to 60 KV 75 mA
4 HV 4 0 to 10 KV 100 mA 14 HV 14 0 to 60 KV 100 mA
5 HV 5 0 to 20 KV 30 mA 15 HV 15 0 to 75 KV 50 mA
6 HV 6 0 to 20 KV 100 mA 16 HV 16 0 to 75 KV 75 mA
7 HV 7 0 to 30KV 20 mA 17 HV 17 0 to 75 KV 100 mA
8 HV 8 0 to 30 KV 100 mA 18 HV 18 0 to 100 KV 50 mA
9 HV 9 0 to 50 KV 20 mA 19 HV 19 0 to 100 KV 75 mA
10 HV 10 0 to 50 KV 50 mA 20 HV 20 0 to 100 KV 100 mA
